Reliable heavy-duty Commodore 64 and Commodore 128 adjustable replacement power supply unit (PSU) with an additional power output for an FDD 1541-II/1571-II/1581. High-quality design dedicated for C64 and C128 systems to prevent damage from hazardous events such as overvoltage. Adjustable, stabilized and filtered +5V DC and 9V AC, with additional +12V DC FDD voltage with a combined output of 30W. Works with all AC power standards from 110V to 230V.
Quantity
1

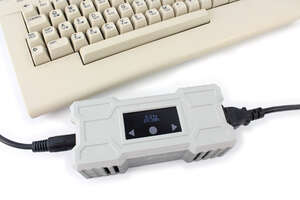

Replacement power supply for Commodore 64 and Commodore 128
Stabilized 5V/3.0A DC output with anti-ripple filter
Adjustable 5V output through touch screen settings

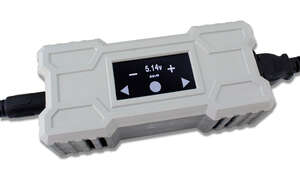

OLED display with readouts and settings
Touch sensor for digital control and voltage adjustment
Electronically generated adjustable 9V AC output
Stabilized 5V and 12V DC for floppy drive
Supports FDD 1541-II/1571-II/1581

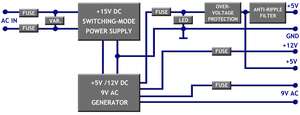

Over-voltage and over-current protection
Fused on AC and DC side and fully isolated

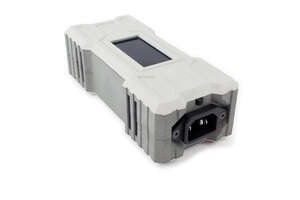

On/off AC switch on rear side

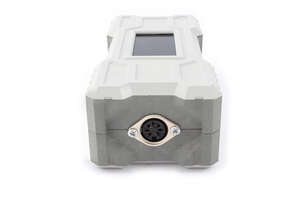

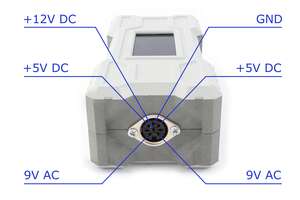

Output voltages on universal DIN socket

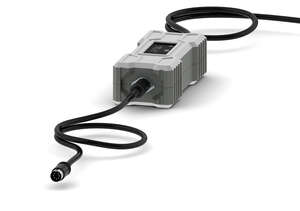

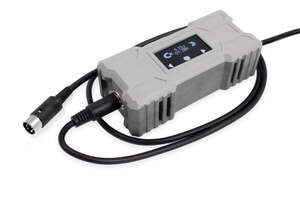

Output power cable included with DIN plugs
Default power cable for C64 (C128 and FDD cable not included)

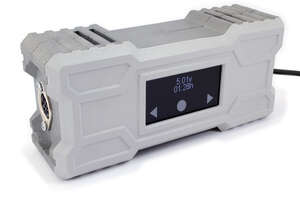

High quality case with digital OLED display
Dual power supply supports both C64 and FDD 1541-II series
Runs cold
Weight only 0.4 kg (0.9 lb)
Custom designed high quality enclosure 158 mm x 71 mm x 51 mm (6.2" x 2.8" x 2.0")
Round DIN7 plug for C64 (default cable)
Square DIN5 plug for C128 (cable can be purchased separately)
DIN4 plug for FDD (cable can be purchased separately)
Universal 115/230V AC power socket (IEC 60320) with US/EU/UK/AU cable
Works with 115V and 230V AC
