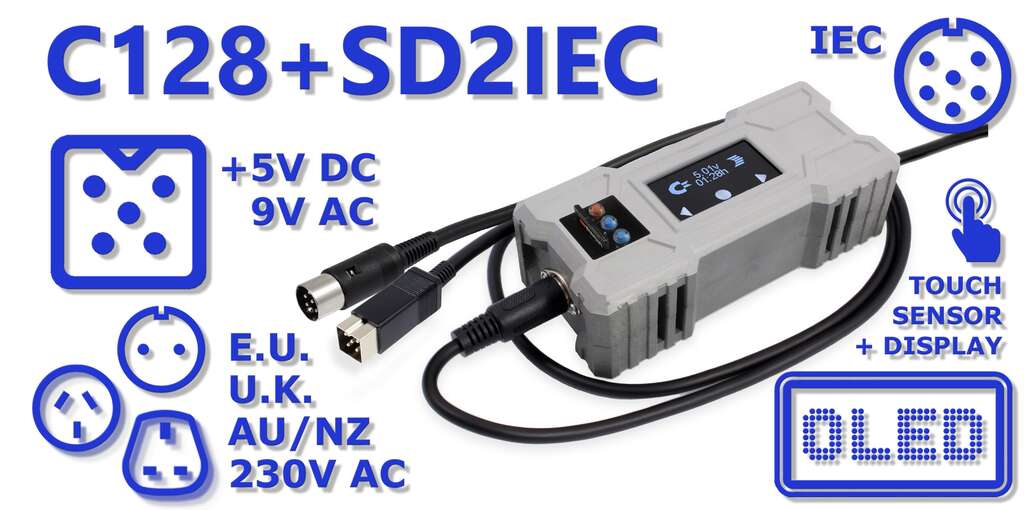

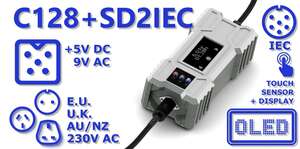

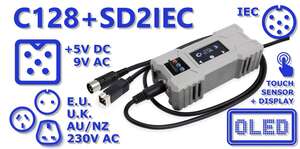

Reliable heavy-duty Commodore 128 replacement power supply unit (PSU) with a built-in SD2IEC module for replacement of the FDD 1541 series. High-quality design dedicated for C128 and VIC-20 systems to prevent damage from hazardous events such as overvoltage. Stabilized and filtered +5V/3.0A DC along with 9V/1.1A AC ensure continued error-free operation of your C128.
Quantity
1
Replacement power supply for Commodore 128
Stabilized 5V/3.0A DC output with anti-ripple filter
OLED display with digital voltage and time readout
Touch sensor for toggling OLED display screens
Transformer-generated 9V/1.1A AC output
Built-in SD2IEC module for replacing the FDD 1541 series
SD2IEC module features standard Disk1/2 and Reset buttons, and status LEDs
Over-voltage and over-current protection
Fused on AC and DC side and fully isolated
On/off AC switch on rear side
Output voltages on universal DIN socket
Output power cable included with DIN plugs
High quality case with digital OLED display
SD2IEC module powered directly from PSU, no power cable necessary
Runs cold
Weight only 0.7 kg (1.4 lb)
Custom designed high quality enclosure 158 mm x 71 mm x 51 mm (6.2" x 2.8" x 2.0")
Square DIN5 plug for C128 and DIN6 plug for FDD/IEC
230V AC power socket (IEC 60320) with EU/UK/AU cable
